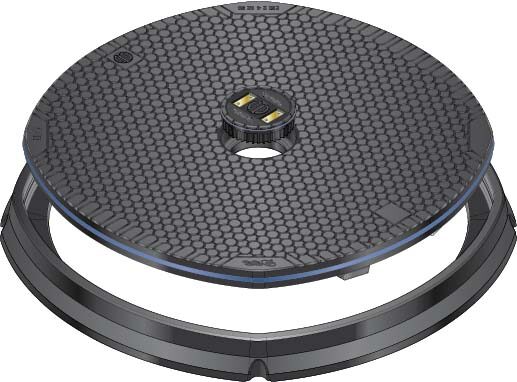

CR106 with dip cap

Manhole covers for petrol forecourts

This product is the same as the CR106 but contains the dip cap in the centre of the cover. This can be removed instead of lifting the whole cover.

It is watertight and can have different coloured tabs inserted in the dip cap to identify different fuels.

The Benefits of a ThruBeam composite cover over traditional covers.

The CR 106 is perfect for:

Load Rating	EN124:2015 Class C250
Clear Opening	1060mm Diameter (41 3/4″) CR106-DC incorporates additional dip cap with 150mm clear opening
External dimensions	1122 mm diameter (44 3/16″)
Skid resistance (wet polishes)	PSRV 60
Weight	40 Kg (88.2lb) Combined weight with frame 53kg (116.8lb)
Lifting points	Single key housing
Tread depth	Tread depth complies with EN124:2015
Tread type	Embedded aggregate – uni-directional
Wear indicators	Four moulded
Markings	Week, year and location of manufacture on the underside of cover. Cover size, weight on the top surface.
Corrosion / chemical resistance	All component parts are resistant to chemical attack, diesel, petrol, salt and water or a combination of the above over the lifespan of the cover. Surface discolouration is acceptable in service
Combustion properties	All component parts do not support combustion. Products of combustion do not contain harmful chemicals (eg bromides)
Sealed	Yes (optional – can be retro-fitted)
Vented	No
Carbon footprint	Low
Material	Advanced fibre glass composite
Client logo	Can be provided on top surface
Security features	Available on request

Load Rating	EN124:2015 Class C250
Clear Opening	1060mm Diameter (41 3/4″)
Weight	13 Kg (28.7lb)
External dimensions	1245.9 mm diameter (49 1/16″)
Material	Advanced fibre glass composite
Installation details	See installation page
