BM6060

Manhole covers for pedestrian areas

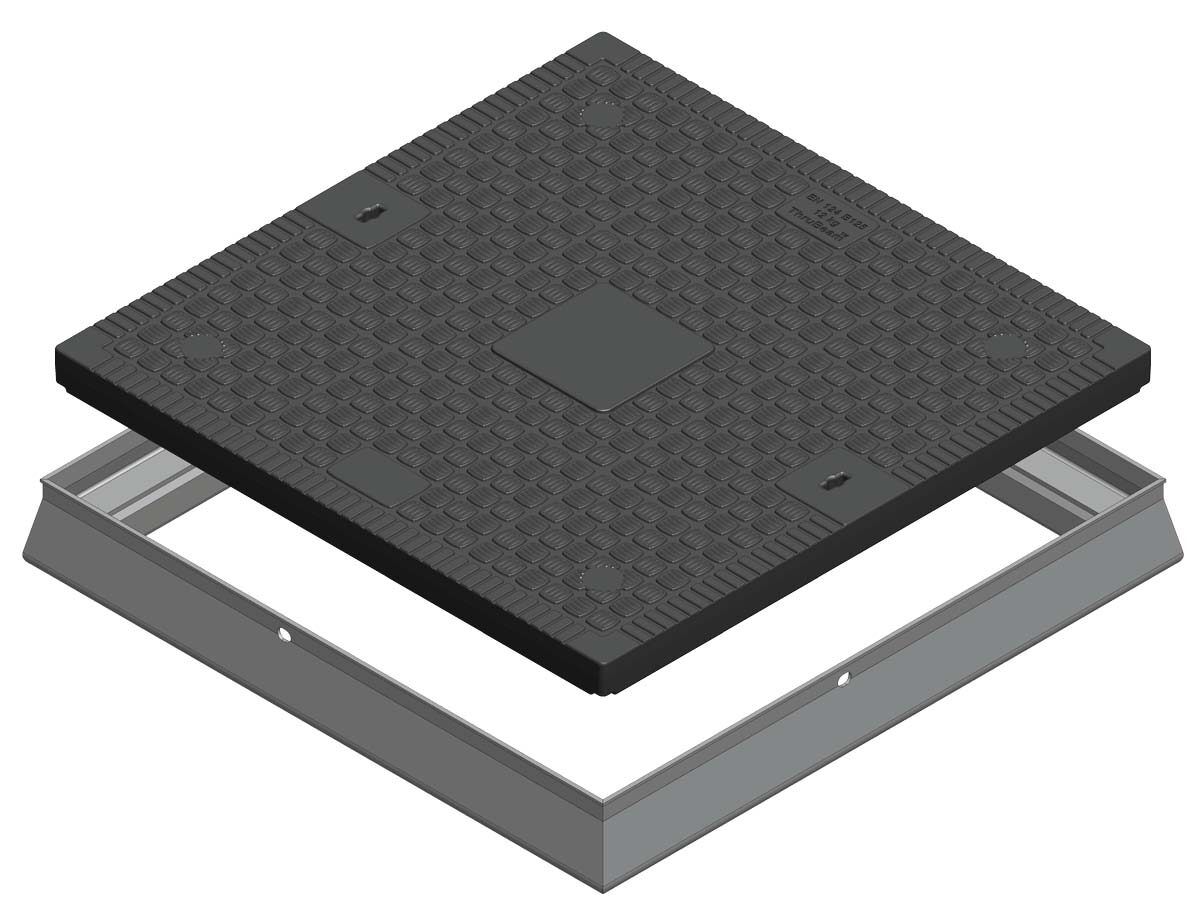

This cover and frame 600 x 600 mm clear opening is one of the most common sizes used across industry. Used mainly in pedestrian and associated areas.

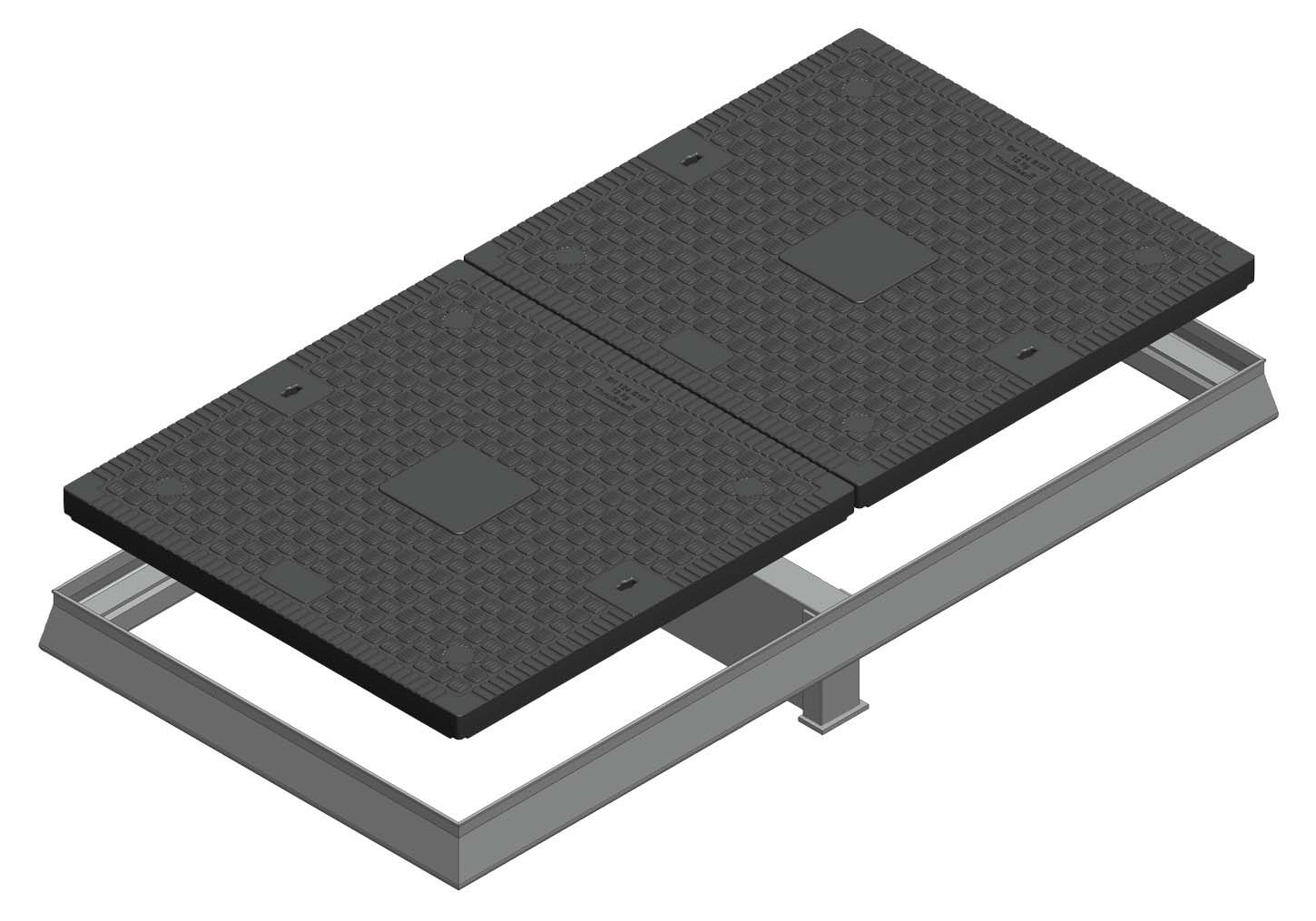

It can be supplied in multiples with a removable central beam for easy access.

All our covers can personalised with logos and information as required. The frames are designed in either steel or aluminium.

The Benefits of a ThruBeam composite cover over traditional covers.

The BM 6060 is perfect for:

Load Rating	EN124:2015 Class BM125
Clear Opening	600mm x 600mm (23 5/8″ x 23 5/8″)
External dimensions	660mm x 660mm x 69mm (26″ x 26″ x 2 3/4″)
Skid resistance (wet polishes)	PSRV 60
Weight	12 Kg (26.4 lbs)

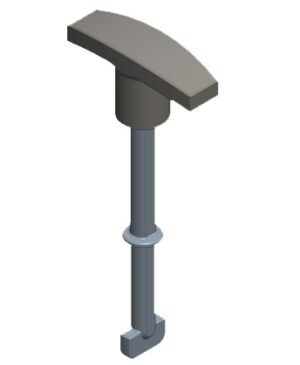

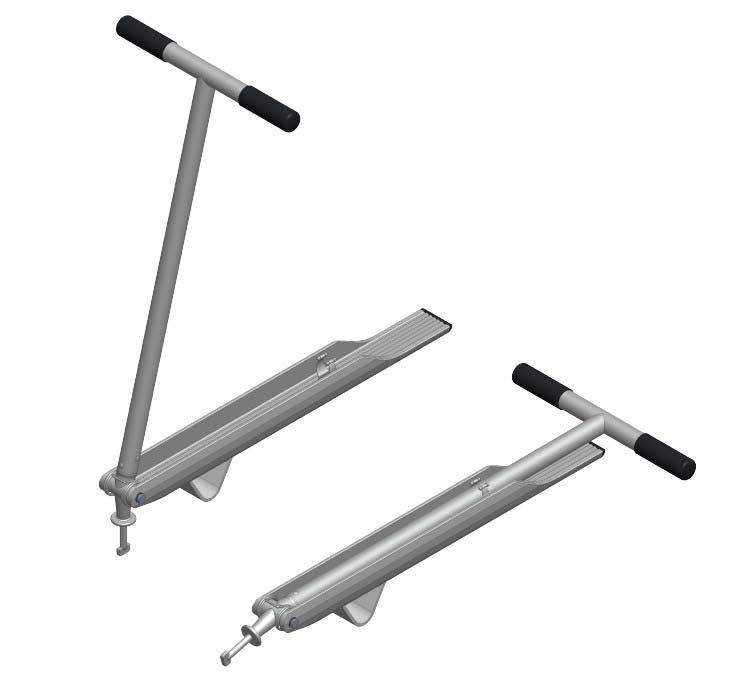

Lifting points	Two moulded in key slots
Tread depth	Tread depth complies with EN124:2015 Class BM125
Tread type	Embedded Aggregate
Wear indicators	One embedded

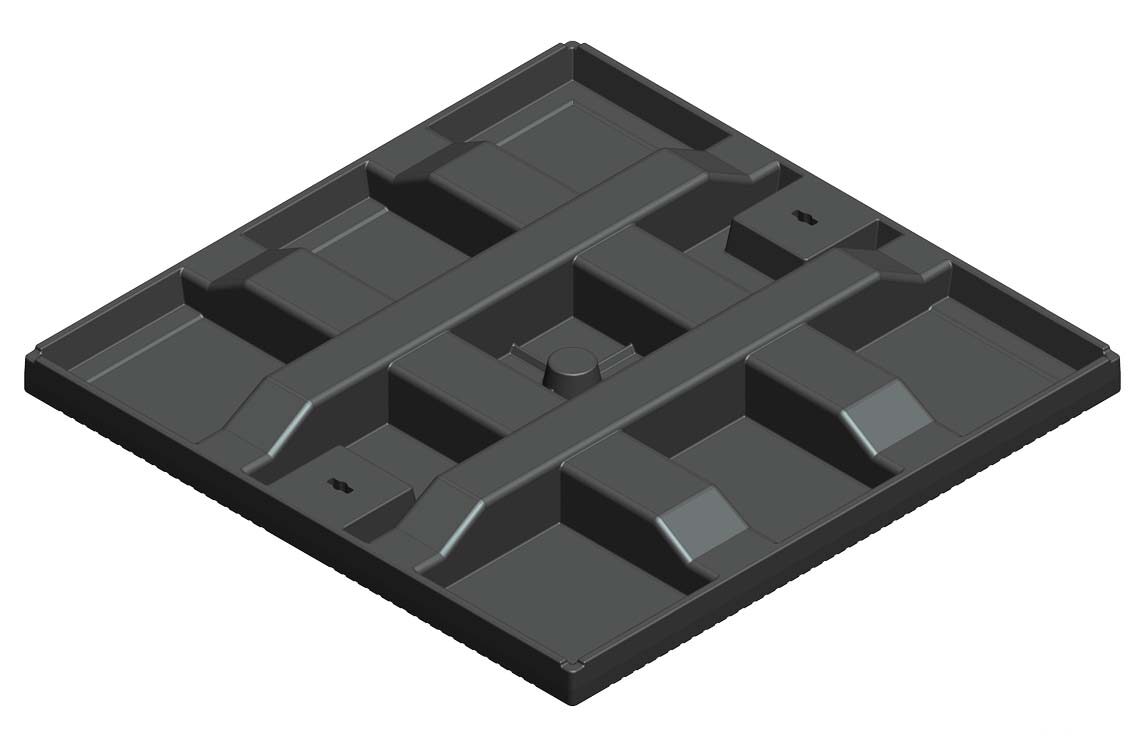

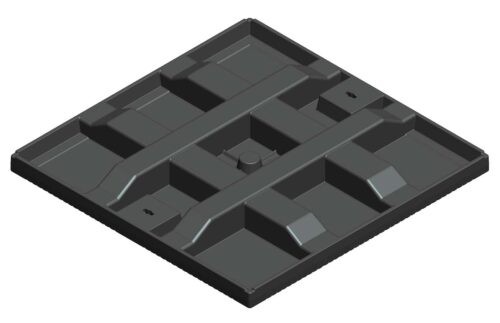

Markings	Week, year and location of manufacture moulded into underside of cover. Cover size, weight on the top surface.
Corrosion / chemical resistance	All component parts are resistant to chemical attack, diesel, petrol, salt and water or a combination of the above over the lifespan of the cover. Surface discolouration is acceptable in service
Combustion properties	All component parts do not support combustion. Products of combustion do not contain harmful chemicals (eg bromides)
Sealed	No
Vented	No
Carbon footprint	Low
Material	Advanced fibre glass composite
Client logo	Can be provided on top surface
Security features	Locking mechanism

Load Rating	EN124:2015 Class BM125
Clear Opening	600mm x 600mm (23 5/8″ x 23 5/8″)
Weight	1.9 Kg (4.2 lbs)
External dimensions	670mm x 670mm x 45mm (approx)
Material	Galvanised steel or Aluminum
Installation details	On application
